Drone Technical Specifications | CRAFTSMAN & BLACKSMITH

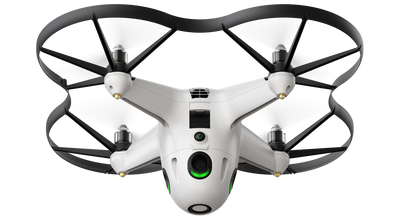

Designed for safety and performance, the lightweight drone security system features sophisticated technology for autonomous flight, high-quality video capture and accurate landing and charging, each and every time.

Weight

1.56 kg (battery included)

GPS

Multi-band multi-constellation RTK

Body size

28 x 28 x 21 cm

Full size (including prop guards)

48 x 48 x 21 cm (57 cm diagonal)

Camera field-of-view

50°(v), 100°(h)

Propeller size

22.9 cm

Sensor resolution

1920x1080 HD @25fps

Cruise speed

14.5 km/h or 4 m/s

Bandwidth requirement

3 Mbps (up & down)

Operational flight time

15 min (+5 min safety reserve)

Video latency

~250 ms

Battery capacity

4000 mAh

Wind speed resistance

9m/s, 32kph, 20mph

Obstacle avoidance range

6 meters

Gust resistance

14m/s, 50kph, 32mph

Max transmission distance

600 meter radius

Operational temperatures

-10°C to 40°C

Hover accuracy

30 cm

Recharge time ratio

1:2 flight time to recharge time
 (2 min flight = 4 min recharge)

The drone Hub/hive not only houses and charges the Drone — it’s the brains of the entire drone security system, processing and analyzing sensor data using state-of-the-art embedded AI computing.

Weight

35 kg

Runtime on backup battery

1 hour

Dimensions when closed

86 x 80 x 80 cm

Connectivity

Ethernet + optional LTE modem

Dimensions when opening

98 x 80 x 63 cm

Operational temperatures

-20°C to +50°C

Power supply

110V or 220V AC
